POE+ PSE gigabit media converter, 1TP+1FX
 |
 |
 |
The 10/100/1000 Base TX to 1000Base FX is more than a Fiber Media Converter, it is a Power over Ethernet Injector as well. The best data link and power sourcing solution for long haul network equipment.
Power over Ethernet (PoE) devices that serve as Power Sourcing Equipment (PSE). which allows the converter to provide power to IEEE802.3af/at standard-compliant Powered Devices (PDs) using the twisted pair connection. Power transmitted along with data in one single cable (RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as IP Cameras or IP Phones etc..
Features
** 1 Port 10/100/1000Mbps with 1 port 1000Mbps SFP
** 10/100/1000Mbps auto-negotiation auto-MDI-MDI-X
** 1 Port support PoE, supports IEEE 802.3af(15.4W), IEEE802.3at PoE (30W)
** LED indicators for monitoring power/link/activity
** Supports 10/100/1000Mbps-Full/Half-duplex
** Stand-alone (desktop)
** Supports Broadcast Storm Control
** Excellent heat elimination without cooling fan.
** Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Specification
Product Name |
10/100/1000M PoE Media Converter |
Product Model |
POE+11111F-850/POE+11111F-1310 |
Interface |
1x 10/100/1000Base-T PSE port + 1x |
standard |
IEEE802.3i 100BASE-T |
IEEE802.3u 1000BASE-TX |
|
IEEE 802.3 100Base-T |
|
IEEE 802.3u 1000Base-TX |
|
Forwarding Mode |
Store-and-Forward |
LED Indicators |
PWR; FX; LinkLink/Act;FDX;1000;PoE; |
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
Power Output: Max. 15.4 watts (IEEE 802.3af) |
|
PoE port Auto detect AF/AT devices |
|
Output Voltage: DC48V-55V |
|
Power Pin Assignment:4/5+;7/8- |
|
Power Supply Input |
Voltage: DC52V (48-55V) |
Power |
4.8W(When the PD device is not connected) |
|
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter)， |
|
1000BASE-TX: Cat6 or later UTP(≤100 |
|
|
|
Fiber Media |
Multimode 850nm 550M/single mode 1310nm 20KM |
Forwarding Rate: |
1488000pps/port |
MAC address table |
8 K |
Buffer space |
1Mbit |
Bit error rate |
<1/1000000000 |
Working Environment |
Working temperature: 0-50℃ ; |
Storage temperature: -20-75℃ |
|
Relative Humidity: 5%-95 %( no condensation) |
|
Installation |
Stand-alone (desktop) |
Packing List |
2× Media Converter |
1×User Manual/Warranty card |
|
2×power adapter |
|
MTBF |
100,000 hours |
Dimension |
Product size (L×W×H): 93mm× 70mm× 26mm |
Warranty |
3-years |

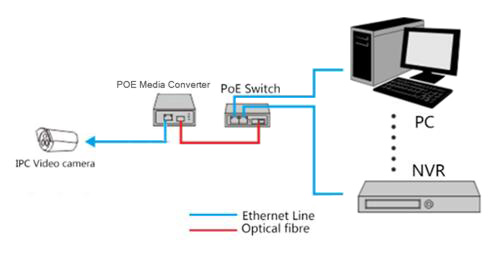

Typical connection
